Rainwater Harvesting System – Concept Designs

Rainwater Harvesting System – Concept Designs

Rainwater harvesting is the collection and storage of rainwater for later use. It is a simple and effective way to conserve water, particularly in areas where water resources are limited or water demand is high. By capturing and storing rainwater, it can be used for a variety of purposes, including irrigation, toilet flushing, and even drinking (after proper treatment).

There are several benefits to rainwater harvesting. First and foremost, it can help to conserve water resources. In many parts of the world, water is a scarce resource, and rainwater harvesting can help to reduce the demand on municipal water supplies and wells. Additionally, rainwater is a natural resource that is free and abundant, making it a cost-effective alternative to other sources of water.

Rainwater harvesting can also help to improve water quality. Rainwater is generally pure and free of contaminants, making it an ideal source of water for irrigation and other non-potable uses. By using rainwater instead of treated municipal water, it is possible to reduce the amount of chemicals and other contaminants that are introduced into the environment.

Rainwater harvesting can also help to reduce the impact of stormwater runoff. When rainwater falls on paved surfaces, it can pick up contaminants and carry them into stormwater systems, which can lead to pollution of rivers and streams. By capturing and storing rainwater, it is possible to reduce the amount of stormwater runoff and help to protect water quality.

In addition to these benefits, rainwater harvesting can also help to reduce the strain on municipal water treatment facilities. By using rainwater instead of treated water, it is possible to reduce the demand on these facilities and help to save energy and resources.

Types of Rainwater Harvesting Systems

Rainwater harvesting is a sustainable practice that involves collecting and storing rainwater for various purposes, such as irrigation, domestic use, and even for drinking in some cases. There are several types of rainwater harvesting systems, each of which serves a specific purpose and is suitable for different scenarios.

Roof catchment systems

Roof catchment systems are the most common type of rainwater harvesting system. These systems involve collecting rainwater from the roofs of buildings and channeling it into storage tanks or cisterns. The water is then filtered and treated for use. Roof catchment systems are suitable for small-scale projects, such as residential or commercial buildings, as they can easily be integrated into the existing plumbing system.

Surface catchment systems

Surface catchment systems involve collecting rainwater from paved surfaces, such as roads, driveways, and parking lots. The water is channeled into gutters and then directed into storage tanks or cisterns. Surface catchment systems are suitable for large-scale projects, such as industrial or agricultural facilities, as they can collect a significant amount of rainwater.

Subsurface catchment systems

Subsurface catchment systems involve collecting rainwater from below the ground surface. These systems use underground channels or pipes to collect rainwater from the soil and channel it into storage tanks or cisterns. Subsurface catchment systems are suitable for areas with low rainfall, as they can capture the small amounts of rainwater that are available.

Greywater recycling systems

Greywater recycling systems involve collecting and treating used water from household activities, such as showering, washing dishes, and laundry. The water is then reused for irrigation or other non-potable purposes. Greywater recycling systems are suitable for areas with limited water resources, as they can help conserve water and reduce the strain on the local water supply.

Components of a Rainwater Harvesting System

The components of a rainwater harvesting system work together to effectively collect, filter, and store rainwater for future use.

Catchment surface

The catchment surface is the area from which rainwater is collected. This can be the roof of a building, a paved surface, or the ground. The size and type of catchment surface will depend on the specific needs and goals of the rainwater harvesting system.

Gutters and downspouts

Gutters and downspouts are essential components of a rainwater harvesting system. They are installed along the edges of the catchment surface to channel rainwater into the storage tanks or cisterns. Gutters and downspouts can be made of various materials, such as metal, plastic, or concrete, and should be chosen based on the specific needs and conditions of the system.

Filters and screens

Filters and screens are used to remove debris and contaminants from the collected rainwater. These can include leaves, twigs, and other organic matter, as well as pollutants from the catchment surface. Filters and screens are typically installed at the inlet of the storage tanks or cisterns to ensure that the water is clean and free of contaminants.

Storage tanks

Storage tanks or cisterns are the final component of a rainwater harvesting system. These are typically large, above-ground or underground tanks that are used to store the collected and filtered rainwater. The size and type of storage tank will depend on the specific needs and goals of the system, as well as the available space and budget.

Pump and distribution system

In some cases, a pump and distribution system may be necessary to move the collected rainwater from the storage tanks to the point of use. The pump and distribution system may include pipes, valves, and other components to ensure that the water is delivered efficiently and effectively.

Design Considerations for Rainwater Harvesting System

Designing a rainwater harvesting system involves a number of considerations to ensure that the system is effective, efficient, and sustainable. Proper design is essential for maximizing the benefits of rainwater harvesting and minimizing any potential issues or challenges.

Catchment area size

Catchment area size and location are important design considerations for rainwater harvesting systems. The catchment area is the surface from which rainwater is collected, and its size and location will influence the amount of water that can be collected. A larger catchment area will generally result in a greater volume of collected water, but it is also important to consider the location of the catchment area in relation to the storage tanks or cisterns. It is generally best to locate the catchment area as close as possible to the storage tanks to minimize the distance that the water must be pumped or carried.

Tank size and location

Tank size and location are also important design considerations for rainwater harvesting systems. The size of the storage tanks or cisterns will depend on the specific needs and goals of the system, as well as the available space and budget. It is generally best to choose a tank that is large enough to store the maximum amount of water that is expected to be collected, as this will minimize the risk of running out of water during dry periods. The location of the tanks is also important, as they should be easily accessible for maintenance and should be located as close as possible to the point of use to minimize the distance that the water must be pumped or carried.

Water quality and filtration

Water quality and filtration are important design considerations for rainwater harvesting systems. The collected rainwater may contain various contaminants, such as leaves, twigs, and other organic matter, as well as pollutants from the catchment surface. It is important to design the system with appropriate filters and screens to remove these contaminants and ensure that the water is clean and safe for use.

Distribution and use of collected water

Distribution and use of collected water are also important design considerations for rainwater harvesting systems. The system should be designed to effectively deliver the collected water to the point of use, whether it is for irrigation, domestic use, or other purposes. The distribution system may include pipes, valves, and other components to ensure that the water is delivered efficiently and effectively. It is also important to consider the specific uses for the collected water and design the system accordingly.

Maintenance and Upkeep of Rainwater Harvesting System

Maintaining a rainwater harvesting system is essential for ensuring that the system continues to operate effectively and efficiently. Proper maintenance and upkeep will help to extend the lifespan of the system and maximize its benefits.

Catchment surfaces

Cleaning and maintaining catchment surfaces is an important aspect of maintaining a rainwater harvesting system. The catchment surface is the area from which rainwater is collected, and it is important to keep it clean and free of debris to ensure that the collected water is of good quality. This may involve regularly cleaning the catchment surface with a broom or other tool, as well as removing any debris that may have accumulated in gutters or downspouts.

Gutters and downspouts

Cleaning and maintaining gutters and downspouts is another important aspect of maintaining a rainwater harvesting system. Gutters and downspouts are used to channel rainwater from the catchment surface into the storage tanks or cisterns, and it is important to keep them clean and free of debris to ensure that the water flows freely. This may involve regularly cleaning the gutters and downspouts with a broom or other tool, as well as removing any blockages that may have formed.

Storage tanks

Cleaning and maintaining storage tanks is also an important aspect of maintaining a rainwater harvesting system. The storage tanks or cisterns are used to store the collected rainwater, and it is important to keep them clean and in good condition. This may involve regularly cleaning the tanks with a brush or other tool, as well as inspecting them for any signs of damage or wear. It is also important to check the tanks for any leaks or other issues that may affect their performance.

Testing and treating collected water

Testing and treating collected water is a final aspect of maintaining a rainwater harvesting system. The collected rainwater may contain various contaminants, such as bacteria, viruses, and other microorganisms, as well as pollutants from the catchment surface. It is important to regularly test the collected water for these contaminants and treat it as necessary to ensure that it is safe for use. This may involve using filtration systems, UV light treatment, or other methods to purify the water.

Legal and Regulatory Considerations for Rainwater Harvesting

There are a number of legal and regulatory considerations that should be taken into account when implementing a rainwater harvesting system. These considerations are designed to ensure that the system is safe, effective, and compliant with relevant laws and regulations.

Local building codes and regulations

Local building codes and regulations are an important consideration for rainwater harvesting systems. Building codes and regulations set out the requirements for the design, construction, and maintenance of buildings and other structures, and it is important to ensure that the system complies with these requirements. This may involve obtaining building permits, following specific design guidelines, and meeting other requirements as needed.

Water rights and permits

Water rights and permits are another important consideration for rainwater harvesting systems. Water rights refer to the legal rights and responsibilities associated with the use of water, and it is important to ensure that the system complies with these rights. This may involve obtaining water rights permits or following other regulations as needed.

Health and safety considerations

Health and safety considerations are a final important consideration for rainwater harvesting systems. The collected rainwater may contain various contaminants, such as bacteria, viruses, and other microorganisms, as well as pollutants from the catchment surface. It is important to ensure that the system is designed and maintained in a way that minimizes the risk of these contaminants entering the water supply and causing harm to people or animals. This may involve using filtration systems, UV light treatment, or other methods to purify the water and ensure its safety.

Rainwater Harvesting Systems – Concept Art

rain water harvester large
tmpkbl sfu7
tmpv0gbizif
tmpzccopo6r
tmpey1tkqh5
tmprb6jdc58
tmp3y n24 s
tmp yv9ponq
tmpj8mznm90

Home Water Harvester

tmphya655t2

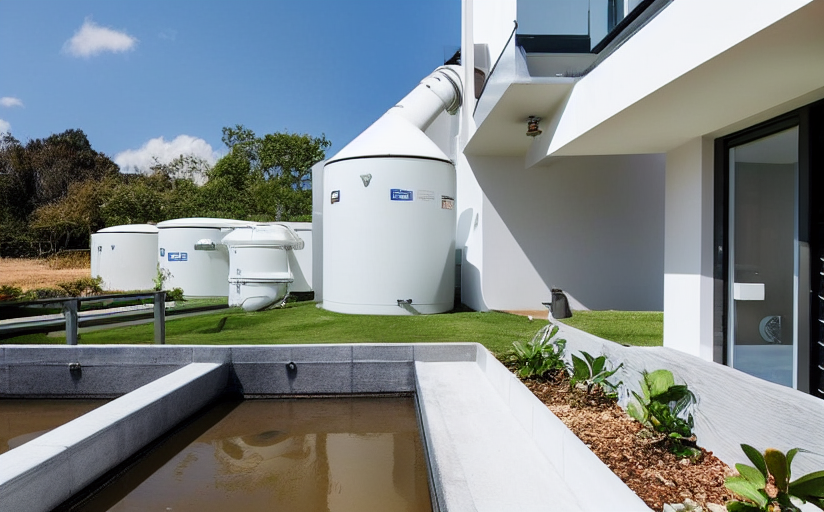

In the yard of a modern house, there is a pond with a water harvesting system located nearby. The water harvesting system consists of a catchment surface, such as the roof of the house, which collects rainwater and channels it into storage tanks or cisterns. The collected rainwater is then filtered and treated for use in the pond or for other purposes, such as irrigation or toilet flushing. The pond is surrounded by a lush green lawn and a variety of plants and flowers, providing a beautiful and peaceful setting for the house. A small bird, such as a sparrow or finch, is perched on the ledge of the pond, enjoying the peaceful surroundings. The water harvesting system not only provides a sustainable source of water for the house and garden but also helps to conserve water resources and protect the environment.
